Unleash your home theater
Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.
-The TV1812 IPAL combines incredibly deep extension with prodigious mid and upper bass capabilities in a large, but manageable cabinet size. A wonderful balance of size, sheer power, and articulation.
-The TV1812 IPAL subwoofer is powered by a 960W RMS (2100W PEAK) built-in amplifier with ICEpower® audio technology. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.

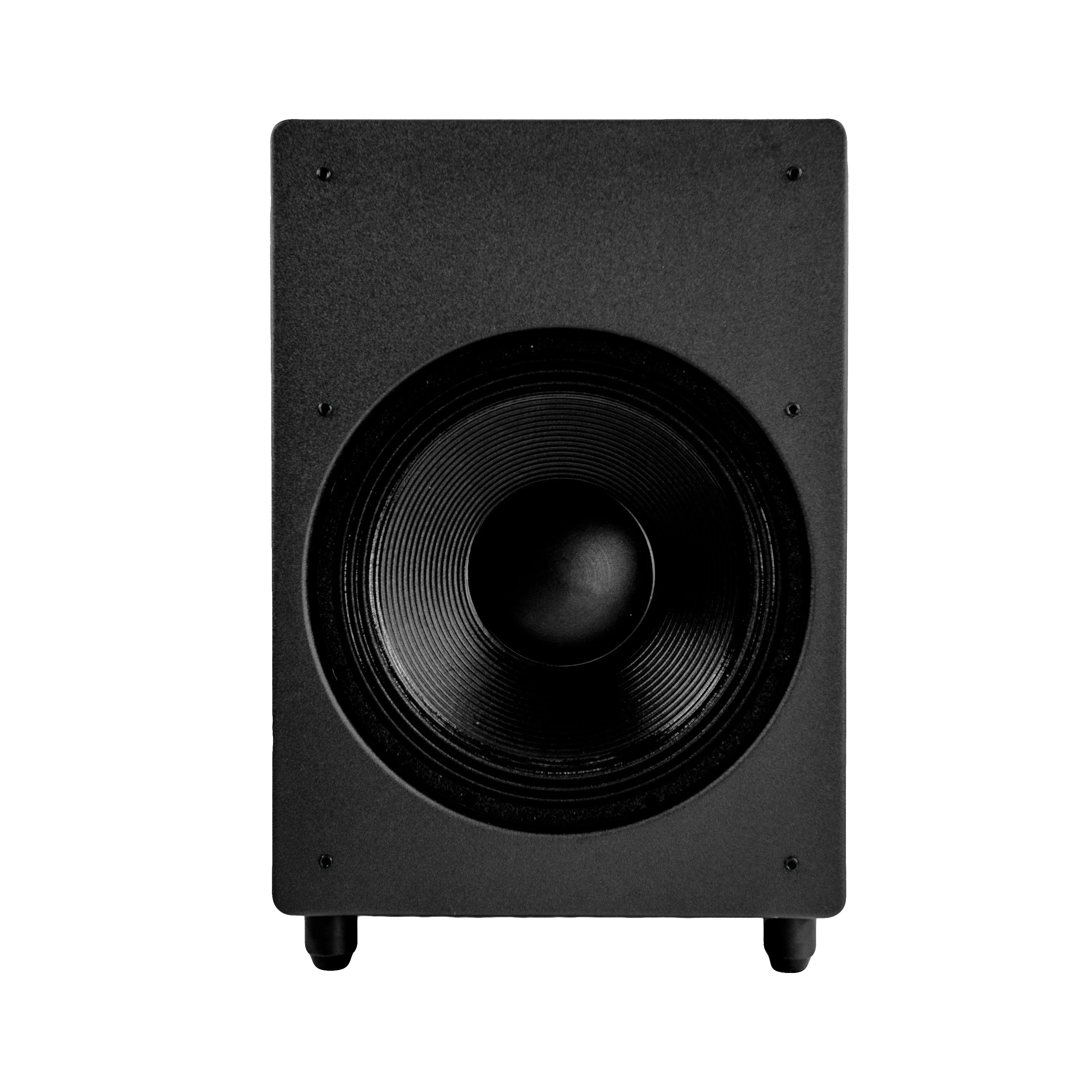

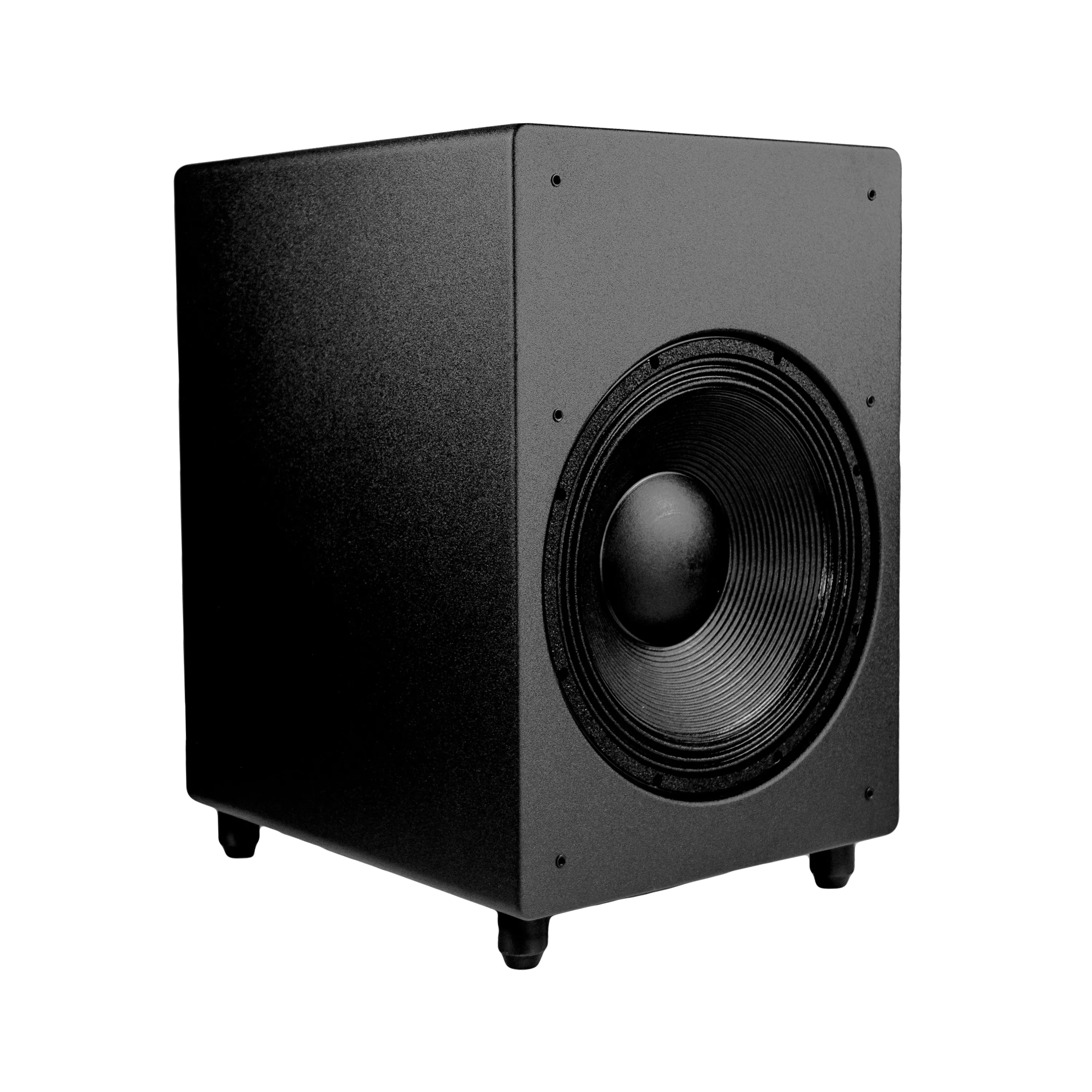

-The MDF enclosure is heavily braced and assembled with rabbet joints for strong structural integrity. The enclosure is finished with a non-reflective and extremely durable textured material. An acoustically transparent fabric grille covers the front-firing 18 inch subwoofer driver. Down firing 4 inch port that widely flares externally and internally to 6 inches.The amplifier is mounted on the rear baffle.
-The TV1812 IPAL contains a single 18 inch neodymium subwoofer driver from B&C in Italy.This next evolution subwoofer uses a new, longer, four layer aluminum voice coil. The result is more energy in the gap, less heat, higher sensitivity, higher power handling, lower distortion and better overall performance.
| Design |
Vented |
| Drivers |
18" IPAL Woofer |
| Powered |
Yes |
| Amp |
960W RMS (2100W PEAK) |
| Enclosure |
CNC machined MDF |
| Frequency Response |
14hz-150Hz Anechoic ( /-3dB) |
| In-Room Extension |
9hz-11Hz |
| Size (DxWxH) |
27" x 21" x 31" with grille |
| Weight |
135 lbs |
Amp
ICEpower® audio technology
Amplifier Power: 960 watts
Inputs: Left and Right RCA
Inputs: Left and Right XLR
12V Trigger
On, Auto, Off selector
Gain control
Time delay(phase) control
Crossover control
Room size control
Custom DSP(digital signal processing) enables superior engineering refinement
CE and FCC approved; EMC and safety pre-approved
Fully integrated amplifier and power supply with mains-converter and auxiliary-converter
Patented HCOM modulation and control techniques for unparalleled audio accuracy
Sound optimized soft clipping
Soft start power up with mute/de-mute.
Thermal and over-current protection
Standby converter with low standby power consumption (less than 1 watt)
Universal mains operation (100-240 V, 50-60 Hz)
Standby power consumption 170 mW @ 230 V
ErP (1275/2008/EC) compliant
Energy Star®v3.0 compliant
117 dBA dynamic range
THD N = 0.005 % @ 1 W (4 Ω, 1 kHz)
THD N = 0.0008 % @ 50 W (4 Ω, 100 Hz)
CCIF IM distortion = 0.0003 %, 10 W, 4 Ω, 18.5 kHz / 1 kHz
High output current limit of 30 A
Assembled by Power Sound Audio
Cabinet
Vented/Ported Enclosure
Down-firing 4 inch port
Front-firing driver

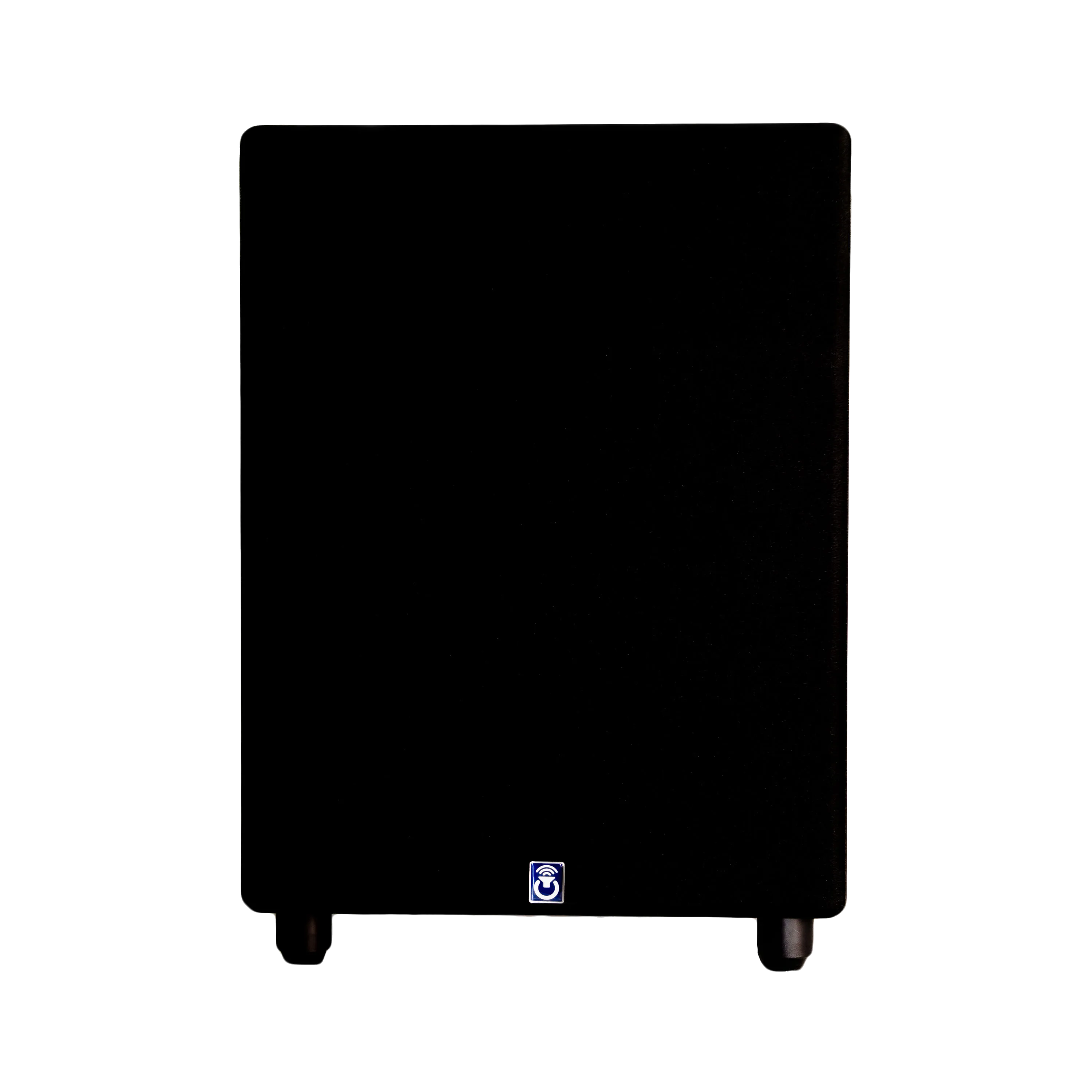

Acoustically transparent fabric grille cover
Super durable, black sand textured finish
Precision machined CNC panels
Rigid MDF baffles
Heavily braced

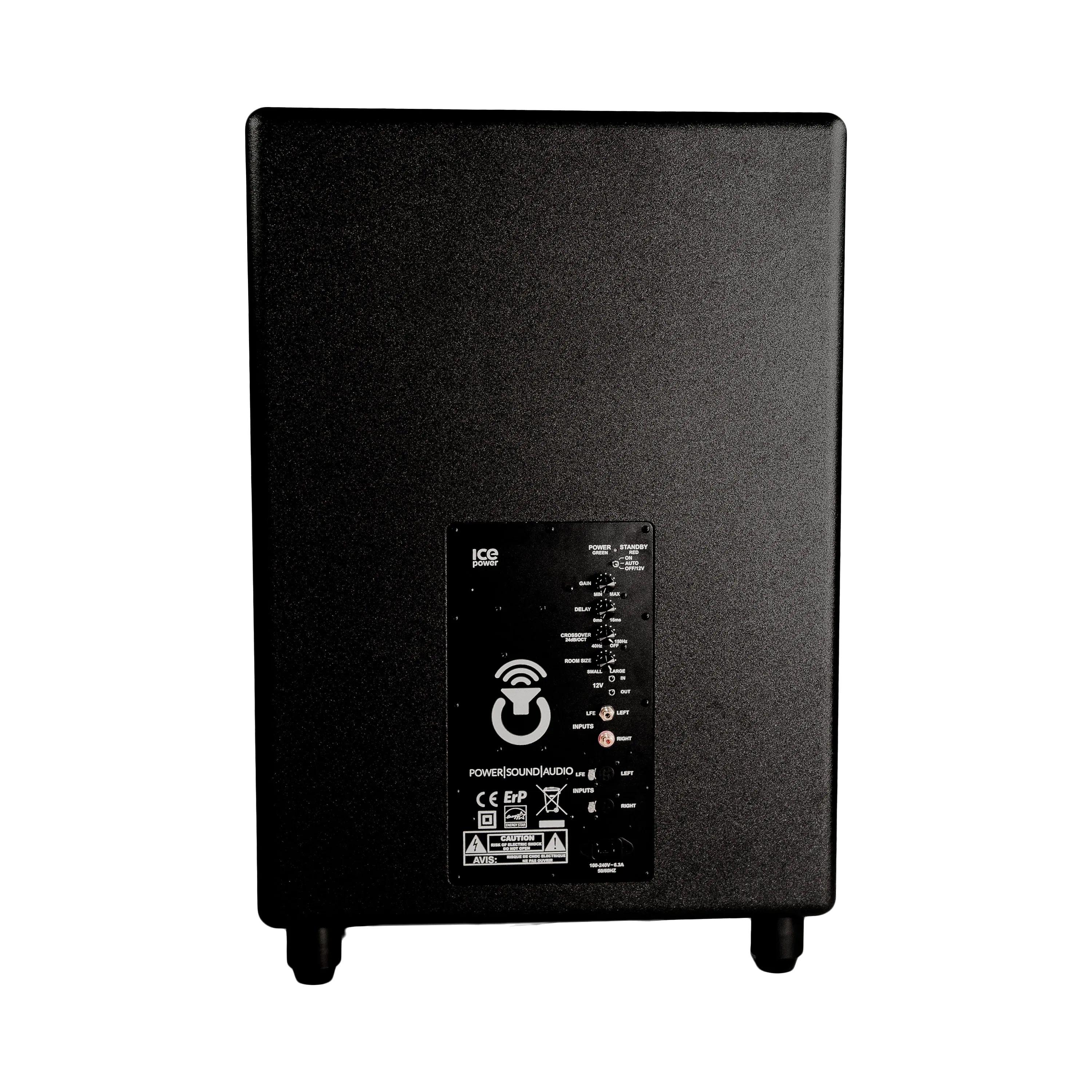

Rear mounted amplifier
USA custom manufactured nylon standoffs
Dimensions (DxWxH): 27"x21"x31" includes grille
Weight: 140 lbs
Cabinet Made in the USA
Woofer
3000 W continuous program power capacity
100mm (4 in.) four layer aluminum voice coil
98 dB sensitivity
Neodymium magnet allows a very high force factor and linear excursion
Double silicon spider with optimized compliance
Ventilated voice coil gap for reduced power compression
Aluminium demodulation ring for very low distortion
