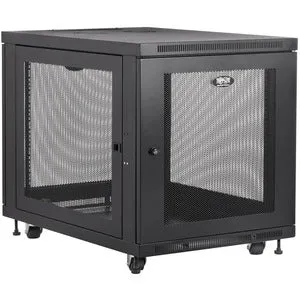

Introducing the Tripp Lite by Eaton SmartRack 12U Mid-Depth Small Rack Enclosure, a robust and reliable solution designed specifically for efficient rack equipment installation and maintenance. Whether you are setting up a small server room or expanding your existing infrastructure, this rack enclosure offers the perfect blend of functionality, security, and convenience.

• Versatile Compatibility: The SmartRack 12U is compatible with all standard 19-inch rack equipment, making it an ideal choice for various applications. The adjustable vertical rails allow you to customize the depth from 3 to 32.5 inches, accommodating a wide range of equipment sizes.
• Impressive Load Capacity: With a remarkable load-bearing capacity of up to 1,000 lbs, this enclosure is engineered to support even the most demanding server installations, ensuring your equipment remains safe and stable at all times.
• Enhanced Cooling Solutions: The top and bottom panels are equipped with ports for efficient cable routing and vents to promote airflow. This design helps dissipate warm air while drawing in cooler air through natural convection, ensuring your equipment stays at optimal operating temperatures.
• Security Features: Protect your valuable equipment with the locking reversible front door and locking removable side panels. These security features prevent unauthorized access and provide peace of mind, making it an excellent choice for sensitive environments.
• Easy Deployment: The included caster kit allows for easy movement and positioning of the enclosure, while the integrated levelers ensure stability once in place. Additionally, it ships fully assembled, allowing for a quick and hassle-free installation process.

Technical Details of the Product

• Rack Space: 12U
• Depth: 33 inches
• Weight Capacity: 1,000 lbs
• Mounting Type: Adjustable vertical rails with square mounting holes
• Cooling Features: Vents and ports for fan installation
• Security: Locking reversible front door and removable side panels
• Compliance: Meets PCI DSS (Payment Card Industry Data Security Standard)

How to Install

Installing the Tripp Lite SmartRack 12U enclosure is straightforward:

1. Unpack the enclosure and check all components are included as per the manual.
2. Position the enclosure in your desired location, utilizing the caster kit for easy mobility.
3. Use the integrated levelers to secure the enclosure in place and ensure it is stable.
4. Adjust and install the vertical rails according to your equipment depth.
5. Mount your equipment securely using the square mounting holes.
6. Connect your cables through the appropriate ports and ensure proper airflow is maintained.
7. Finally, lock the front door and side panels for additional security.

Frequently Asked Questions

1. What type of equipment can I install in the SmartRack 12U enclosure?

You can install any standard 19-inch rack equipment, including servers, switches, routers, and audio/video equipment.

2. How much weight can the enclosure support?

The SmartRack 12U can support up to 1,000 lbs of equipment, making it suitable for even the heaviest servers and devices.

3. Does the enclosure come fully assembled?

Yes, the enclosure ships fully assembled for easy installation and immediate use.

4. Can I install additional fans for cooling?

Yes, the enclosure is designed to support the installation of user-supplied case fans for enhanced cooling as needed.

5. Is this rack compliant with industry standards?

The Tripp Lite SmartRack 12U enclosure meets all enclosure requirements towards PCI DSS compliance, ensuring it is suitable for sensitive environments.
