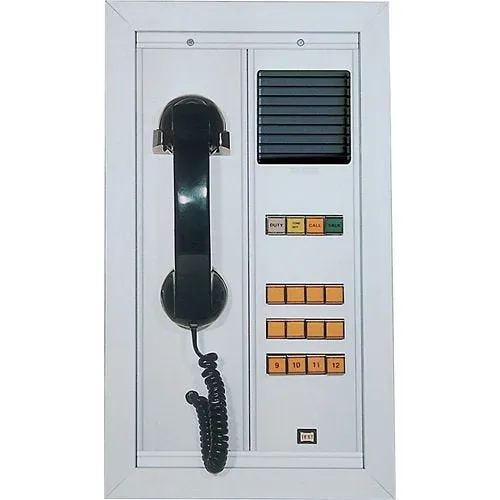

The Tektone NC150 Master Station Panel is constructed of extruded aluminum, and includes the speaker, control module and amplifier board for this modular station, plus 4 to 16 lamp/buttons. The Tektone NC150 may be desk mounted, or flush or surface wall mounted. Lamp/buttons have removable lenses for easy identification. Each master station is configured with one NC150 panel, plus up to four AM150-series panels, to accommodate 4–160 remote stations. NC110 panels may be used as remote annunciators for the NC150.

Options: TA150N Handset panel AM100 Blank Add-on Panel

Panel Dimensions: 14.75"H × 4"W (369 mm × 100 mm)
Housings: Flush: OH200-series Housing & OF200-series Frame
Surface: OH300-series Housing & OF200-series Frame
Desk: IH300-series Desk Housing

Power: 110 VAC supplied by the SS106 Transformer
Required: IH151NK Junction Box with PK151A Power & Control
Unit and SS106 Transformer; IR150-series Stations
