This kit is designed to be used with the NEWER POD-ADAPTABLE models of the Rancilio Line. Some previous models (pre-2007) did not have removable shower screen plates. Rancilio states that the pod specific portafilter (part #) is also required. This kit may also to be used in combination with standard single-dose coffee pods regularly available on the market; only the "double" pod basket is included. The pod used may not exceed 48 mm (approx. 1 7/8" in.) outside diameter.
|
Part Number DESCRIPTION QTY.
|
||||||||||||

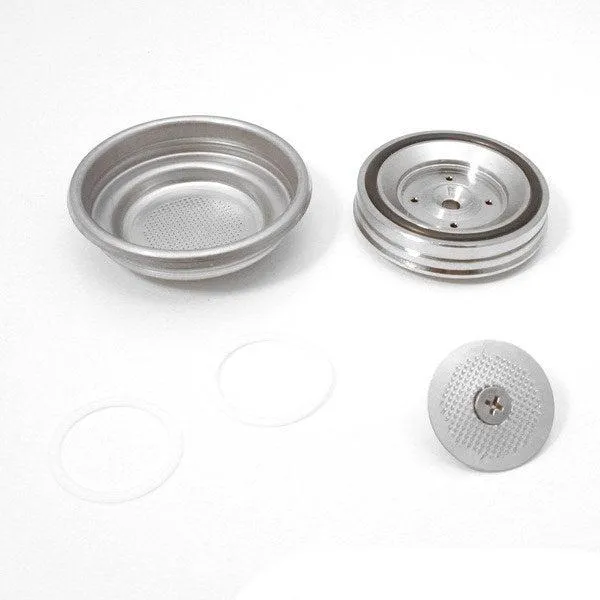

| 10705403 | COMPLETE KIT | 1 | ||||||||||
|
KIT components
|
||||||||||||
| 36404041 | O-Ring 41 x 1,78 VITON 75SH | 1.0 ea. | ||||||||||

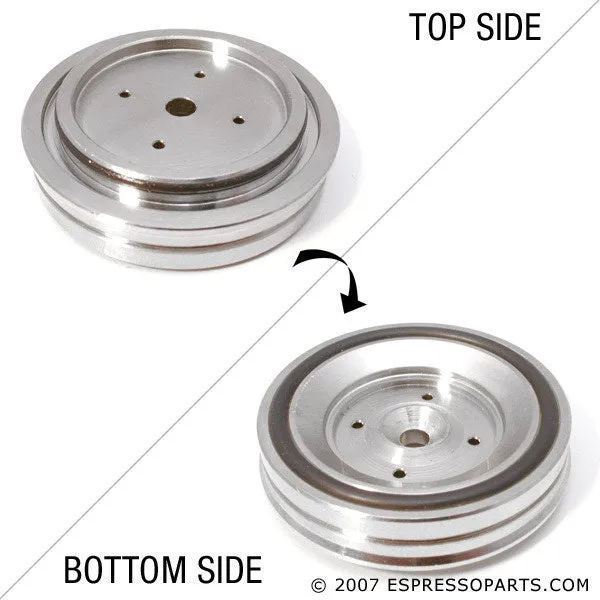

| 23000060 | GROUP DIFFUSION PLATE | 1.0 ea. | ||||||||||
| 36404040 | O-Ring 45 x 3,5 NBR 70SH | 1.0 ea. | ||||||||||
| 46900019 | INSTRUCTIONS | 1.0 ea. | ||||||||||

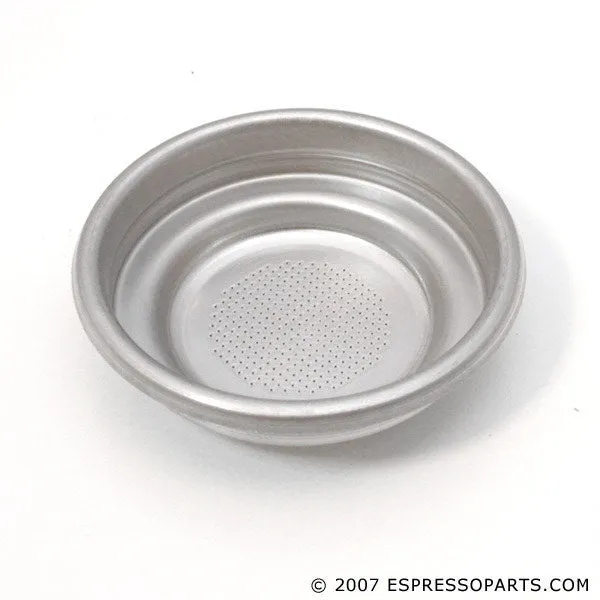

| 40100008 | FILTER BASKET | 1.0 ea. | ||||||||||
| 37030521 | GROUP SCREW M5X12 | 1.0 ea. | ||||||||||

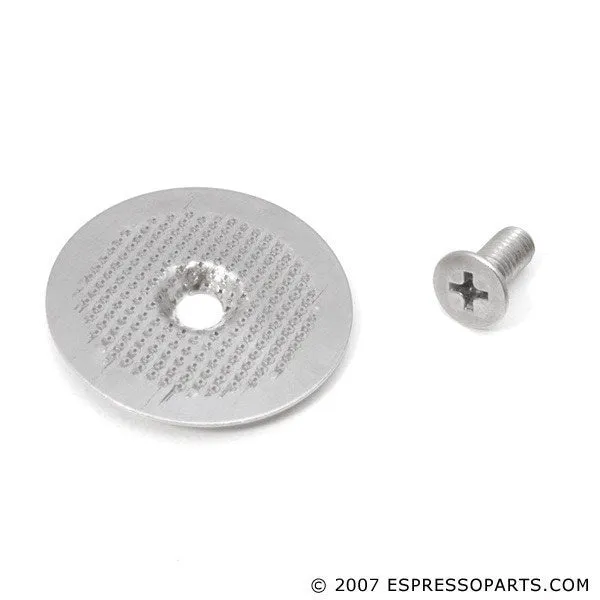

| 40200004 | GROUP SCREEN | 1.0 ea. | ||||||||||
| 23000062 | PTFE SPACER | 2.0 ea. | ||||||||||
