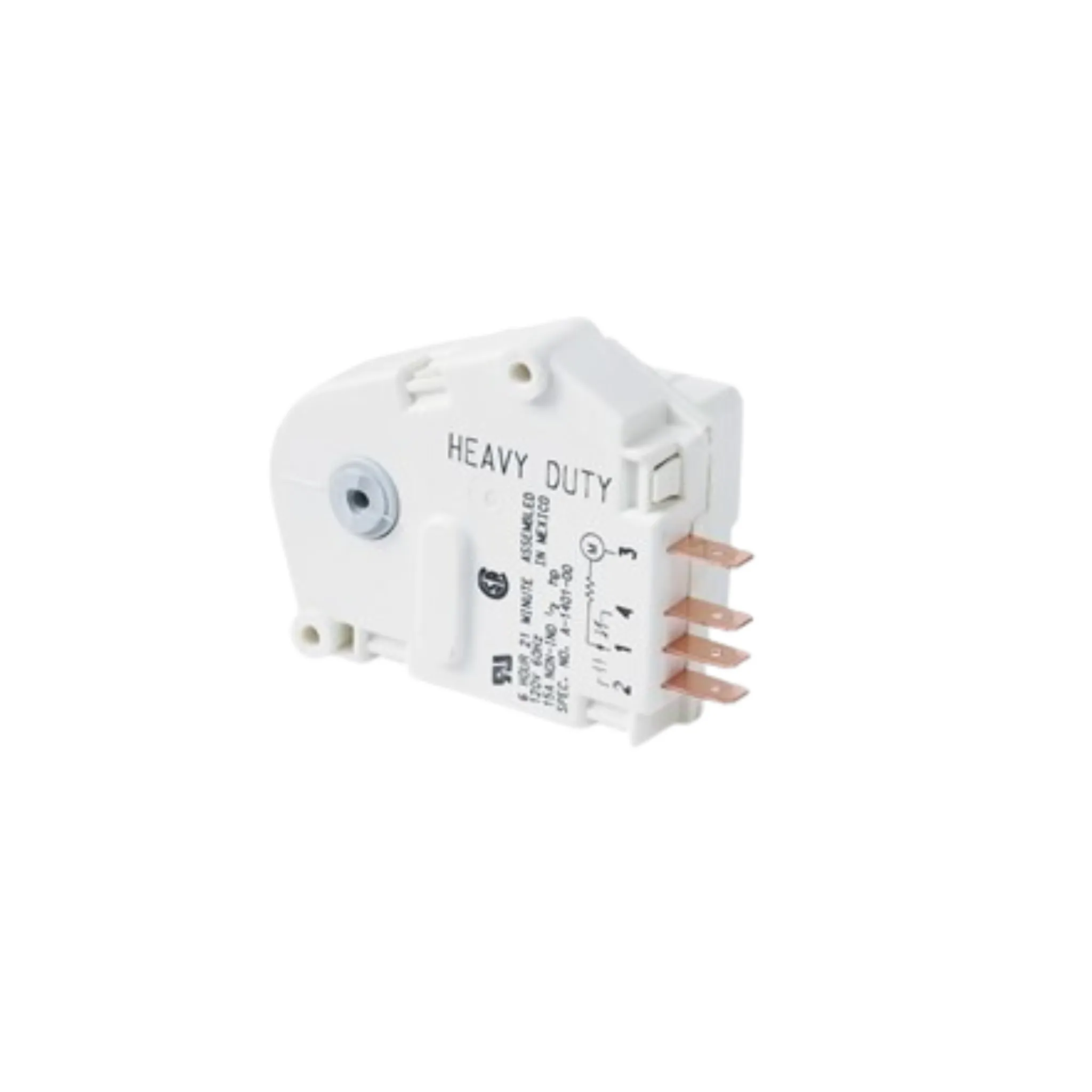

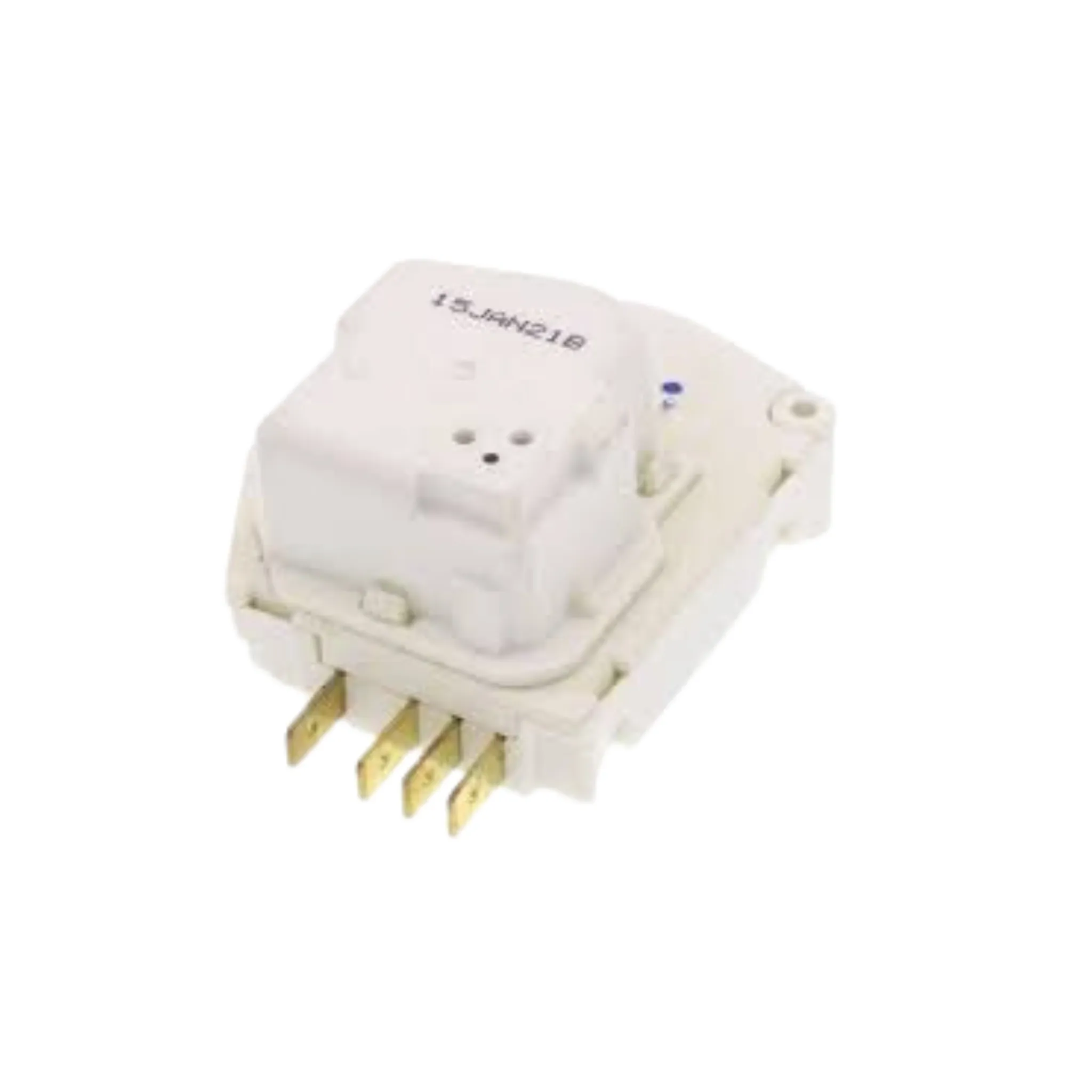

The Paragon® Residential and Light Commercial Defrost Timers are a synchronous motor control that activates an internal SPDT switch to actuate a defrost heater in a refrigerator. These heavy-duty 15 Amp Paragon timers are used by OEM manufacturers to replace both the older classic designs and the newer designs installed for residential as well as light commercial applications.

Features:

Quiet - synchronous design provides extremely quiet operation
Position freedom - timer can be mounted in various locations
Interchangeability - standard mounting allows use in all applications
Double insulated - requires no earth grounding
ROHS, UL and CSA certified
Brass contacts for better corrosion protection
Approved for use in propane based systems

Specifications:

Manufacturer: Paragon
Manufacturer Part Number: G1400-00
Product Type: Defrost Timer Control
Voltage Rating: 120 VAC
Frequency Rating: 60 Hz
Current Rating: 15 A
Motor Size: 1/2 HP
Defrost Cycles: 6 Hours
Defrost Timing: 25 Minutes
Dimensions: 2.7" x 4" x 1.9"
Weight: 2.0 lb.
