Product Details
＋

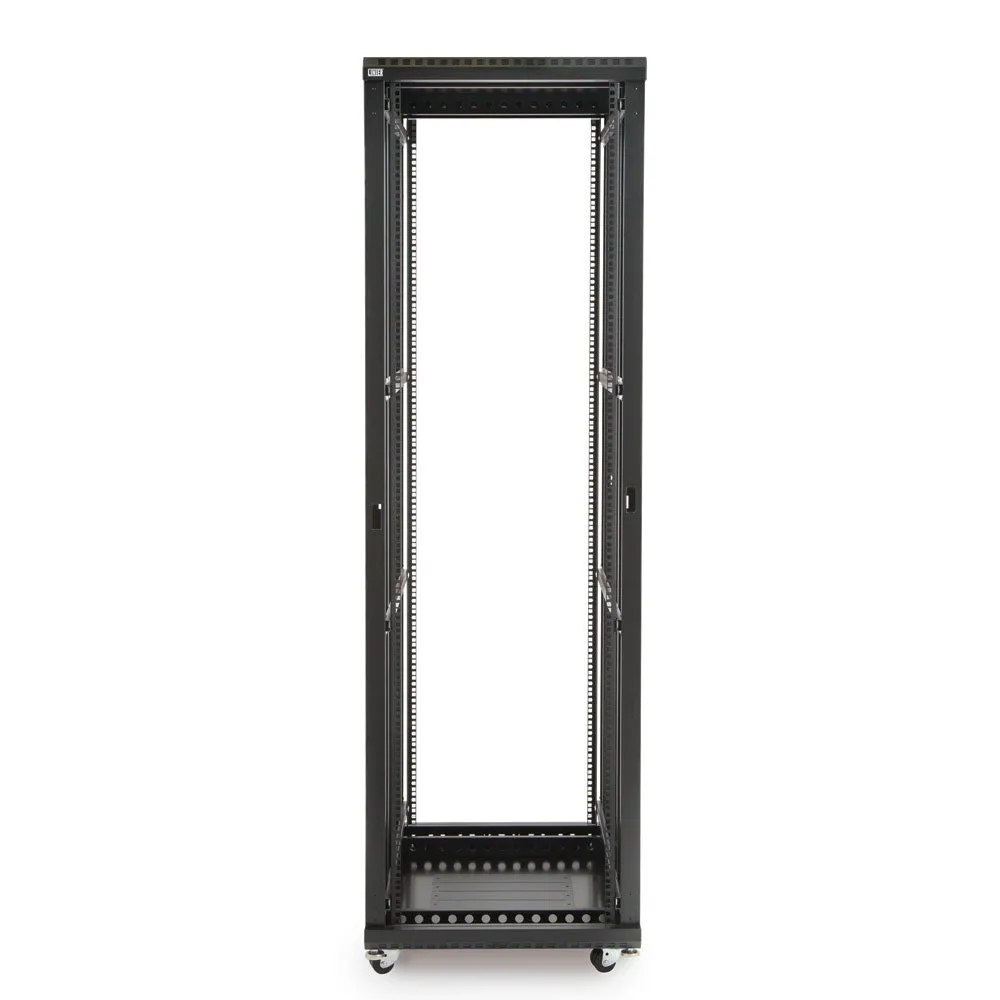

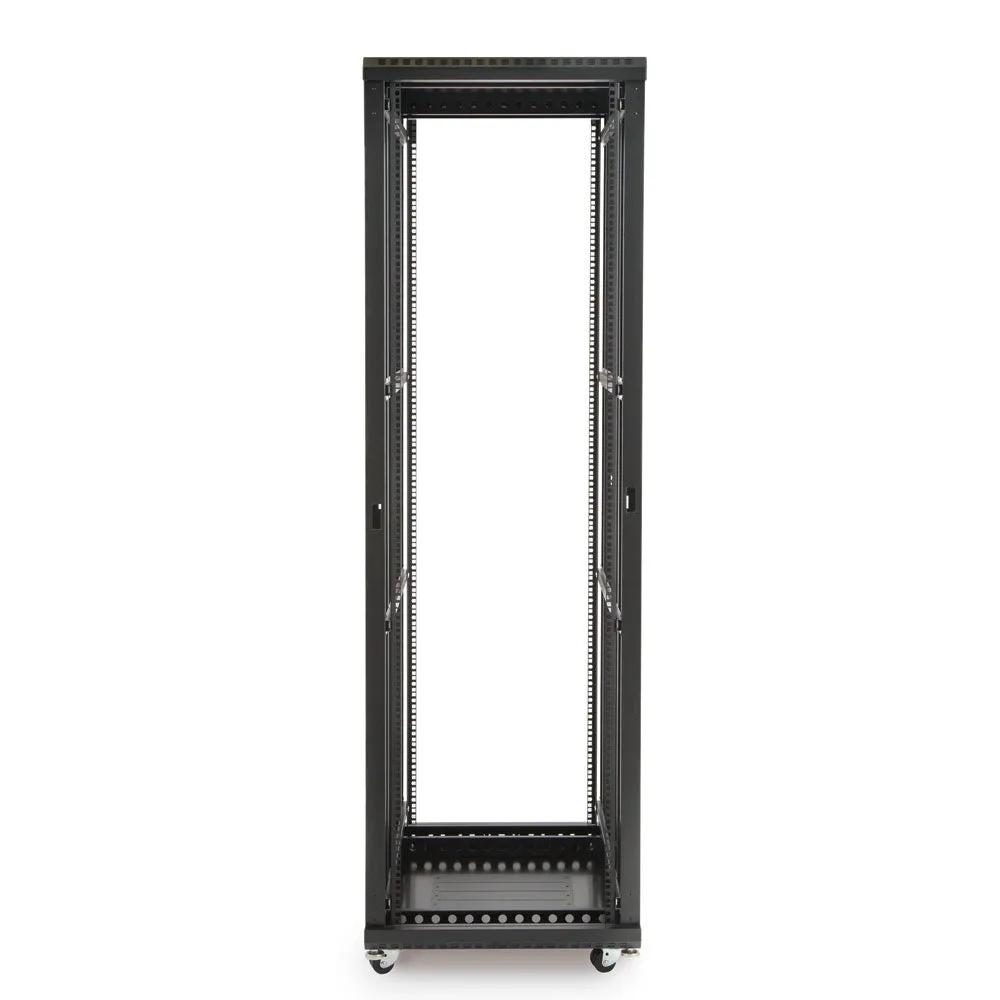

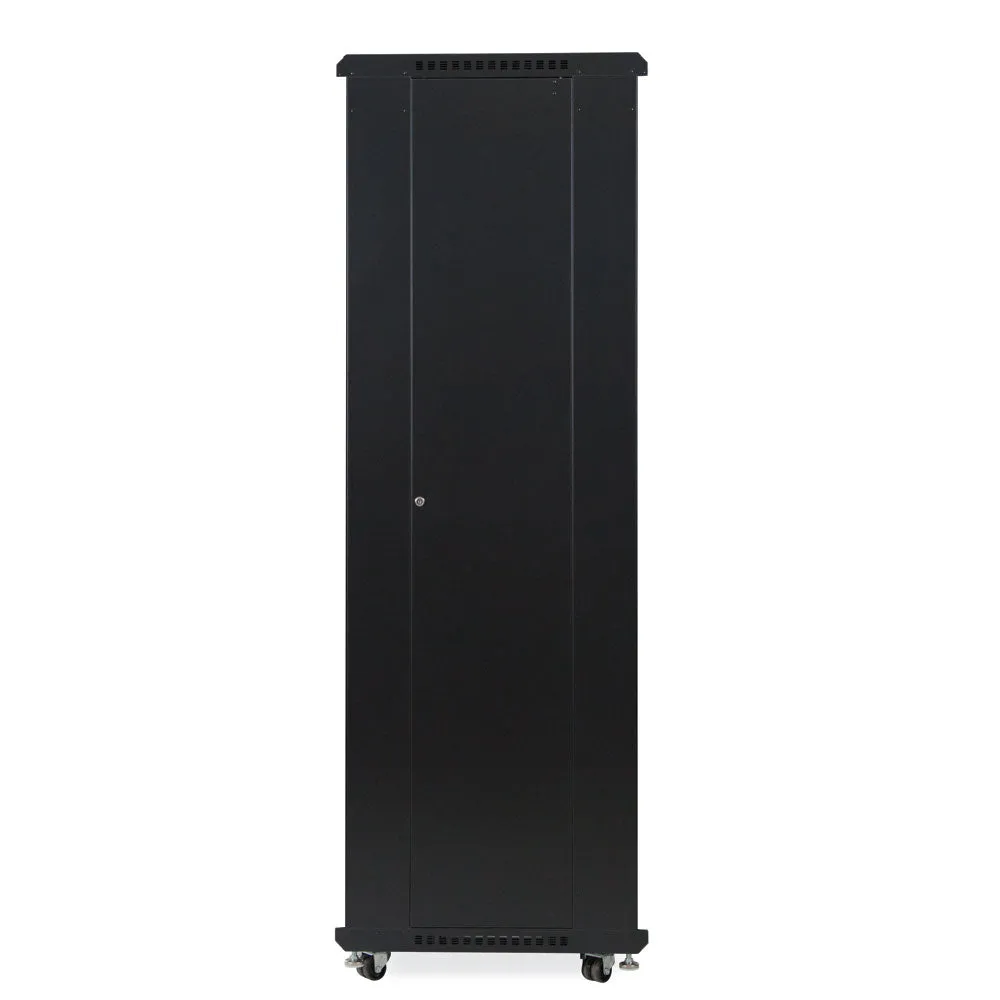

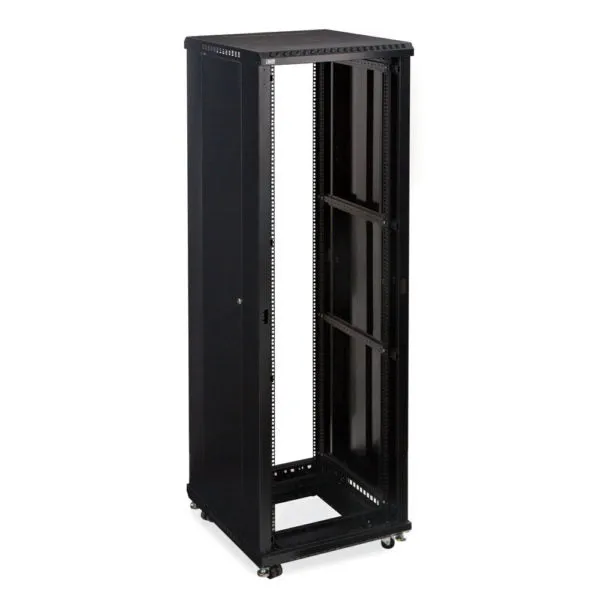

Unlike the 3100 series, the 3180 LINIER® Server Cabinets are built without doors making it easy to monitor and access the front and back of your network equipment. Side panels are included with this series to help enclose and protect your system. Built with a 24" depth, this LINIER® Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and other small network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. Both front and rear access to your equipment is made available with the 3180 LINIER® Server Cabinets.
- No doors
- 24" depth (Also available with a 36" depth)
- Other sizes available: , ,
- 1300 lb. weight capacity (Holds 800 lbs. on casters)

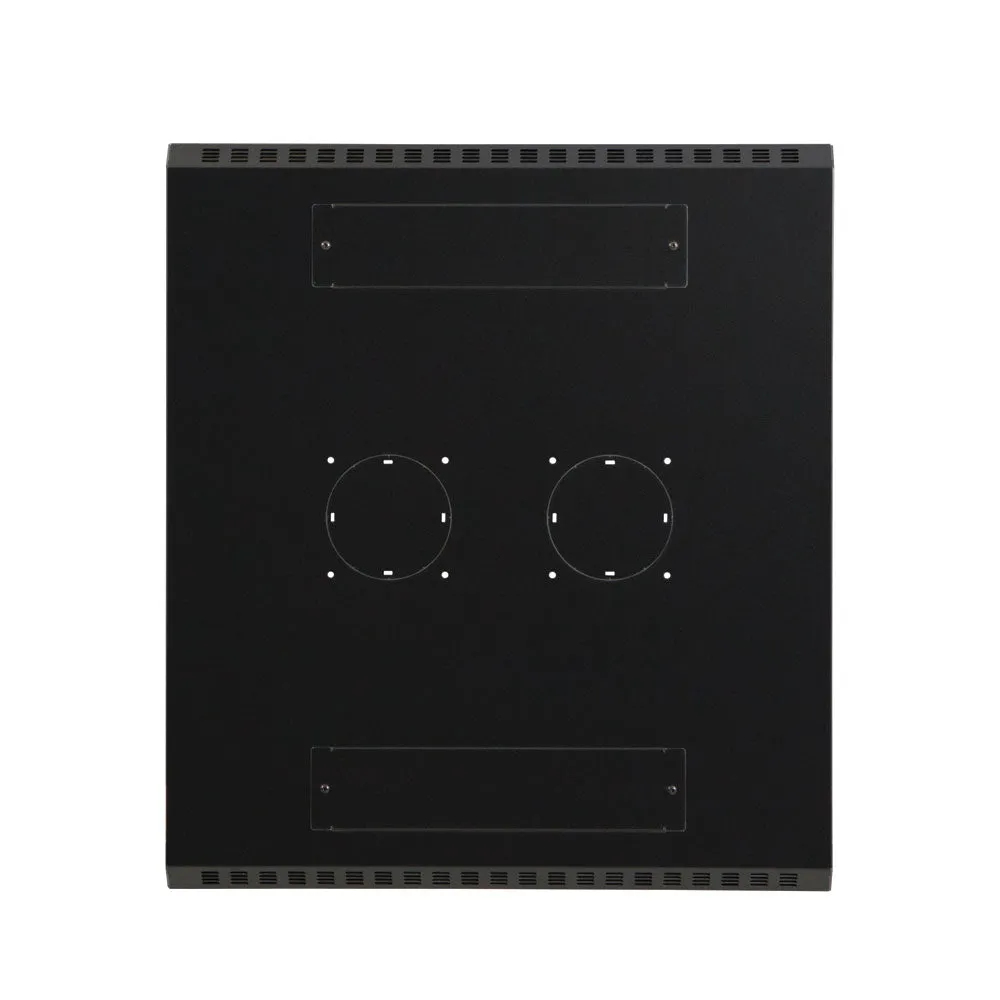

- Top includes laser knockouts
- Includes two sets of adjustable cage nut style mounting rails
- Includes preinstalled casters and levelers
- 5-Year Limited Warranty
Features
Open Frame Design
The open frame design allows for maximum air flow for your network equipment.
Easy Installation

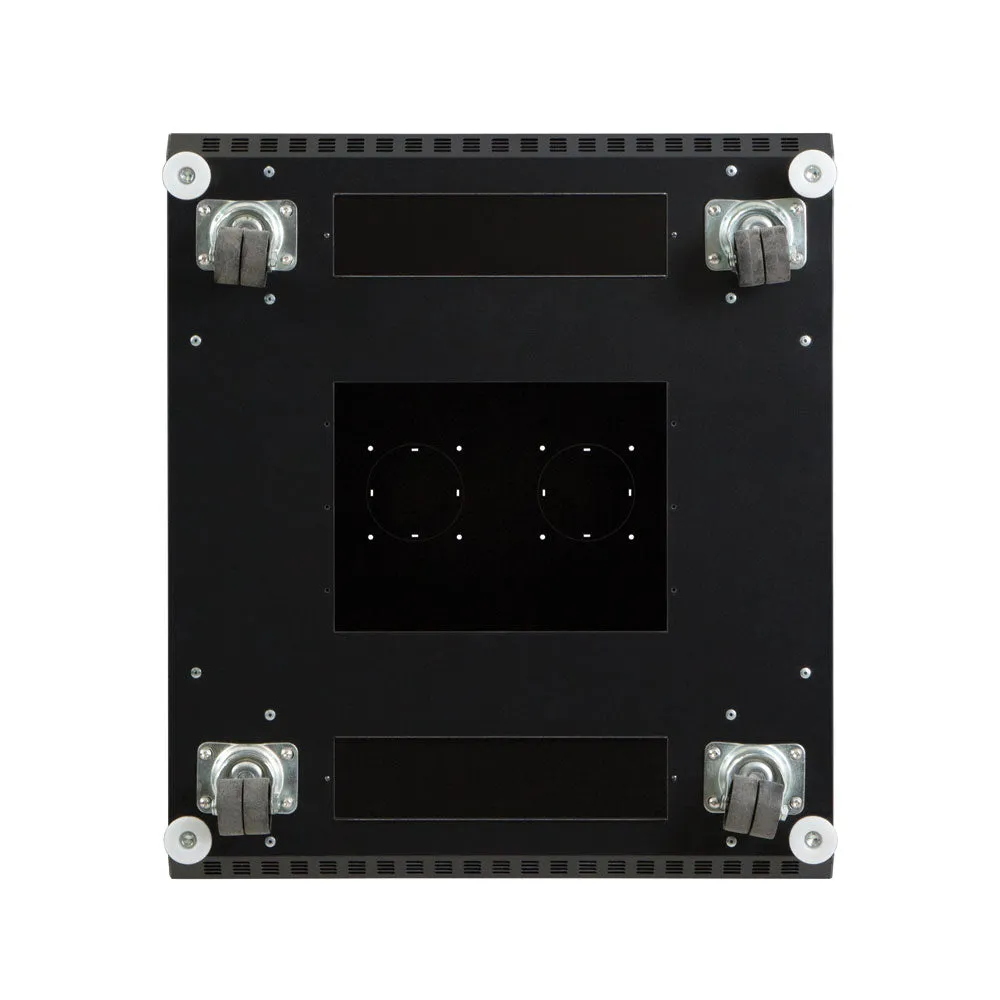

Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)
Adjustable Rails
Includes two sets of adjustable, vertical rails which extend to a maximum depth of 24″ for versatile mounting options.
Specifications
| Part Number | 3180-3-024-42 |
| Width | 24" |
| Depth | 27.00" (Useable 24.00") |
| Height | 80.4" |
| Weight | 150.00 lbs. |
| Shipping Dimensions | 32" L x 45" W x 87" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
| UPC | 879447005158 |
| Warranty | 5-Year Limited Warranty |
| Shipping Method | LTL Freight |
What's in the Box
| Item | Quantity |
|---|---|
| 42U LINIER Server Cabinet - No Doors - 24" Depth | 1 |
| Pre-installed Casters and Levelers | 4 |
| Set of Adjustable Cage Nut Style Mounting Rails | 2 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
| 42U LINIER® Server Cabinet - No Doors - 24" Depth (3180-3-024-42) Cut Sheet | Cut Sheet | 05/19 | 1.0 | 259.27 KB | |
| 42U LINIER® Server Cabinet - No Doors - 24" Depth (3180-3-024-42) Data Sheet | Data Sheet | 05/19 | 1.0 | 237.39 KB | |
| 42U LINIER® Server Cabinet - No Doors - 24" Depth (3180-3-024-42) Instructions | Instructions | 10/21 | 1 | 273.70 KB | |
| 3180-3-024-42.STEP | 3D CAD | 12/19 | 1 | 1.68 MB |
