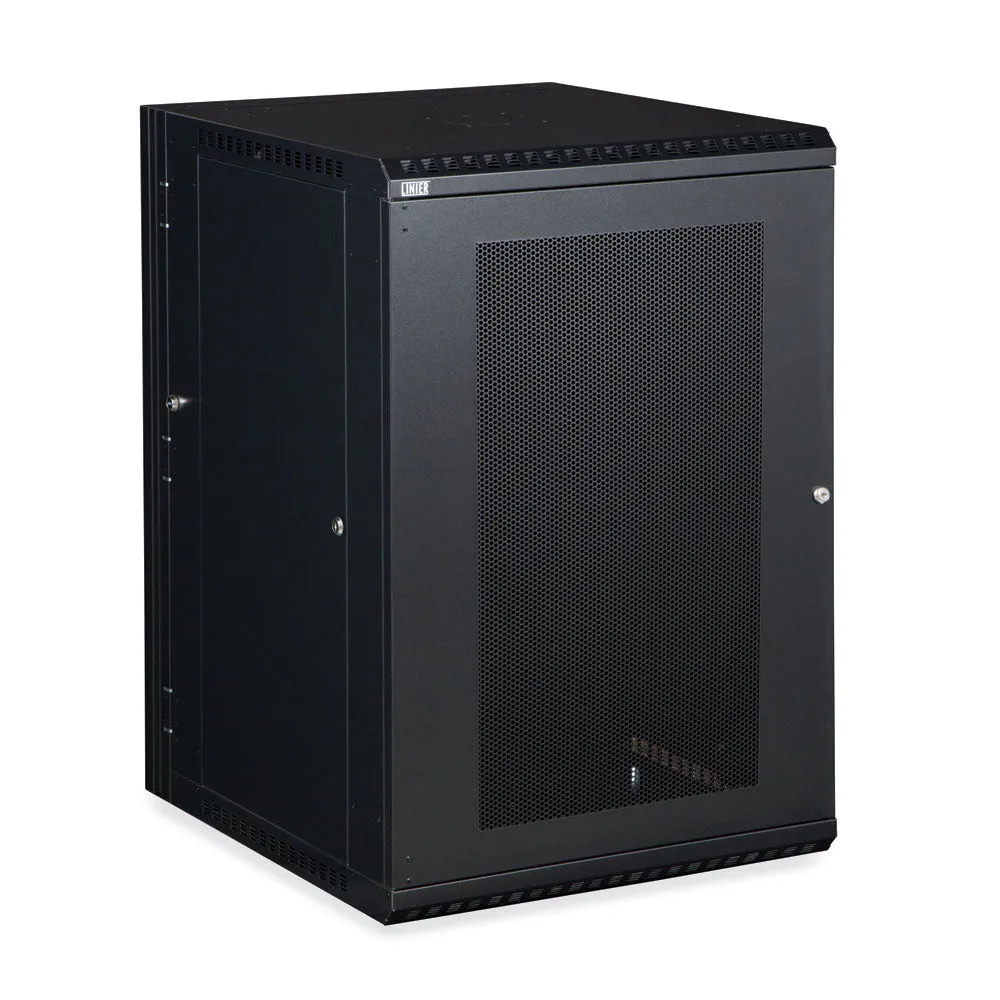

The LINIER® Swing-Out Cabinets are designed to solve the everyday problems technicians have while installing and managing the immense amount of cabling that is all-too-common with datacom and telecom equipment. Don't work around the rack... get a rack that works around you!
  • Includes one locking vented door
  • Locking side panels
  • 150 lb. weight capacity
  • One set of cage nut style mounting rails
  • 90 degree swing-out
  • Mounting depth: 22.5"
  • 19" EIA compliant
  • Made in the USA
  • 5-Year Limited Warranty
Features
Economical Design

Smartly engineered to include all the features you would expect, at a competitive price point, and with the quality that comes with American manufacturing.

90 Degree Swing-Out

Lockable enclosure can be swung out 90 degrees from the back frame allowing access to the rear of installed equipment. This capability provides additional space and accessibility for terminating, installing, and managing cables.

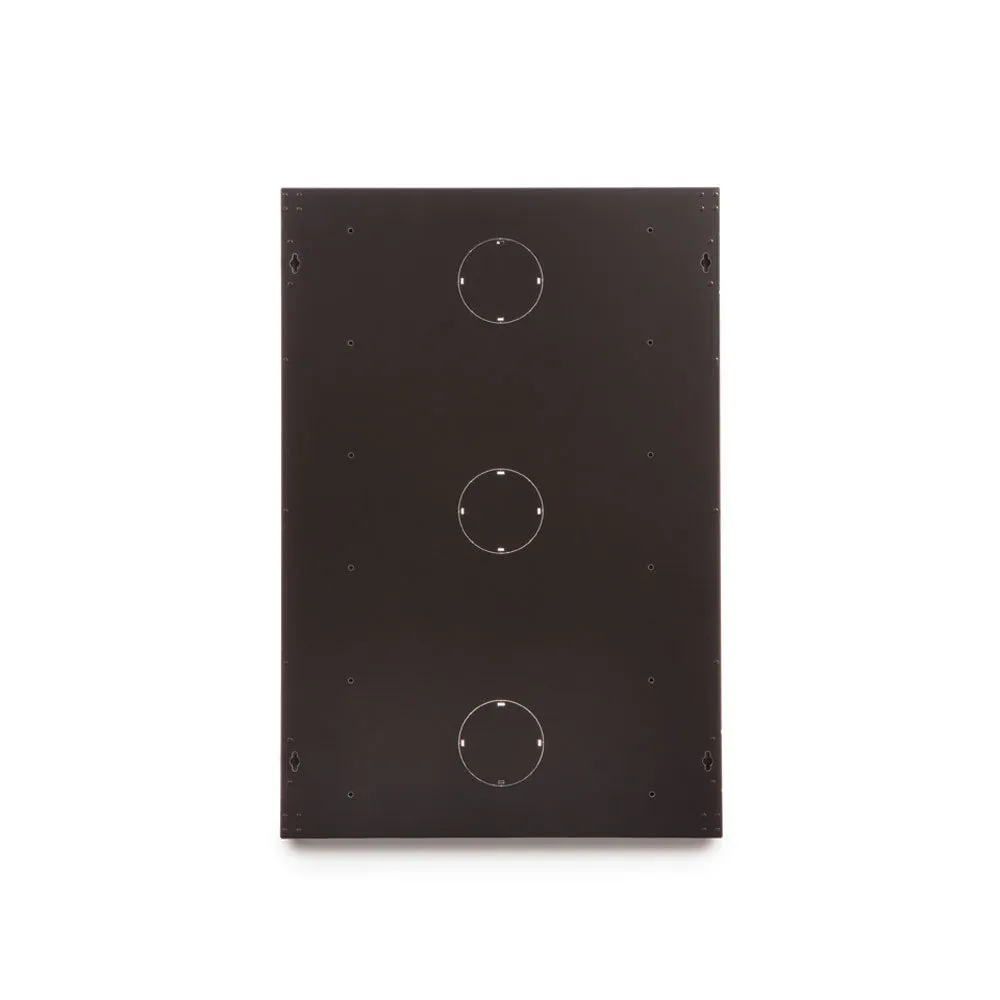

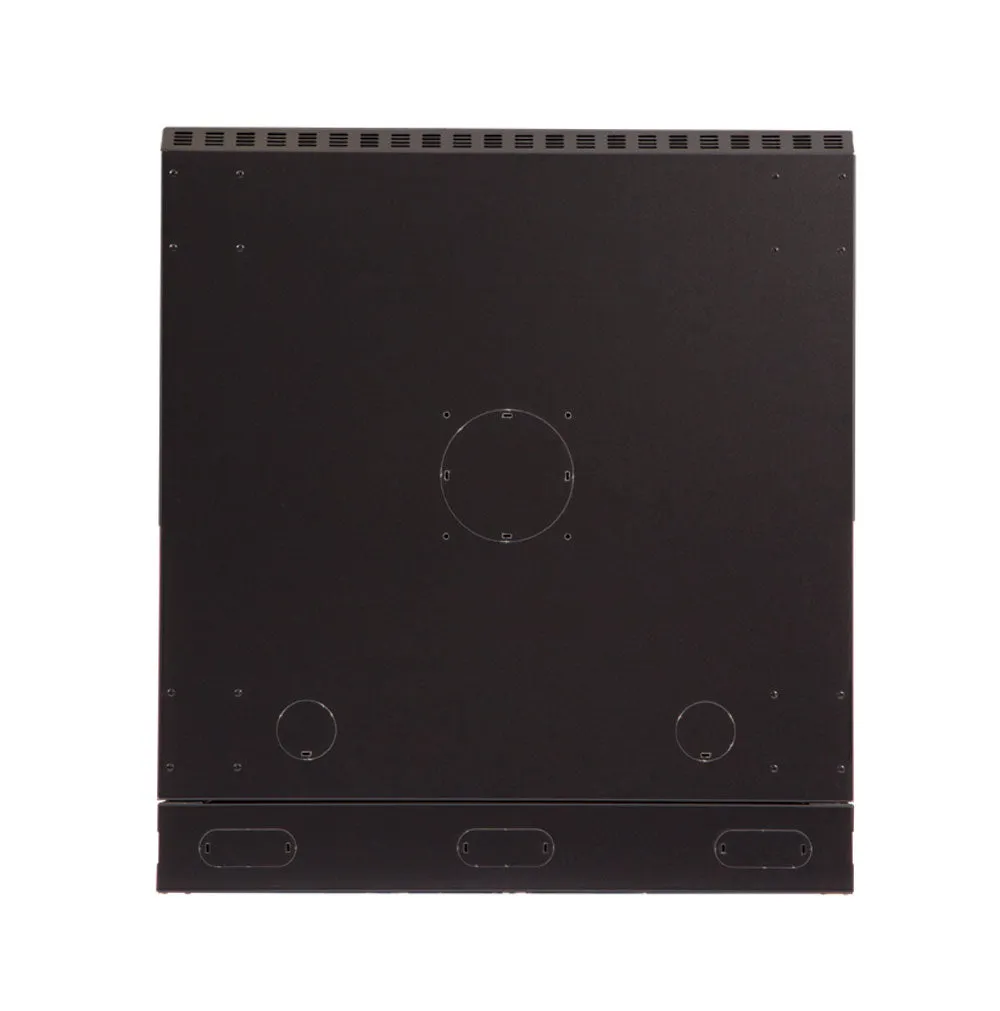

Numerous Laser Knockouts

Strategically placed laser knockouts provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.

Adjustable Rails

The included set of cage nut style rails fully adjust in 1″ increments to accommodate the various depths of equipment on the market. Additional rails are available for devices that require 4-point mounting.

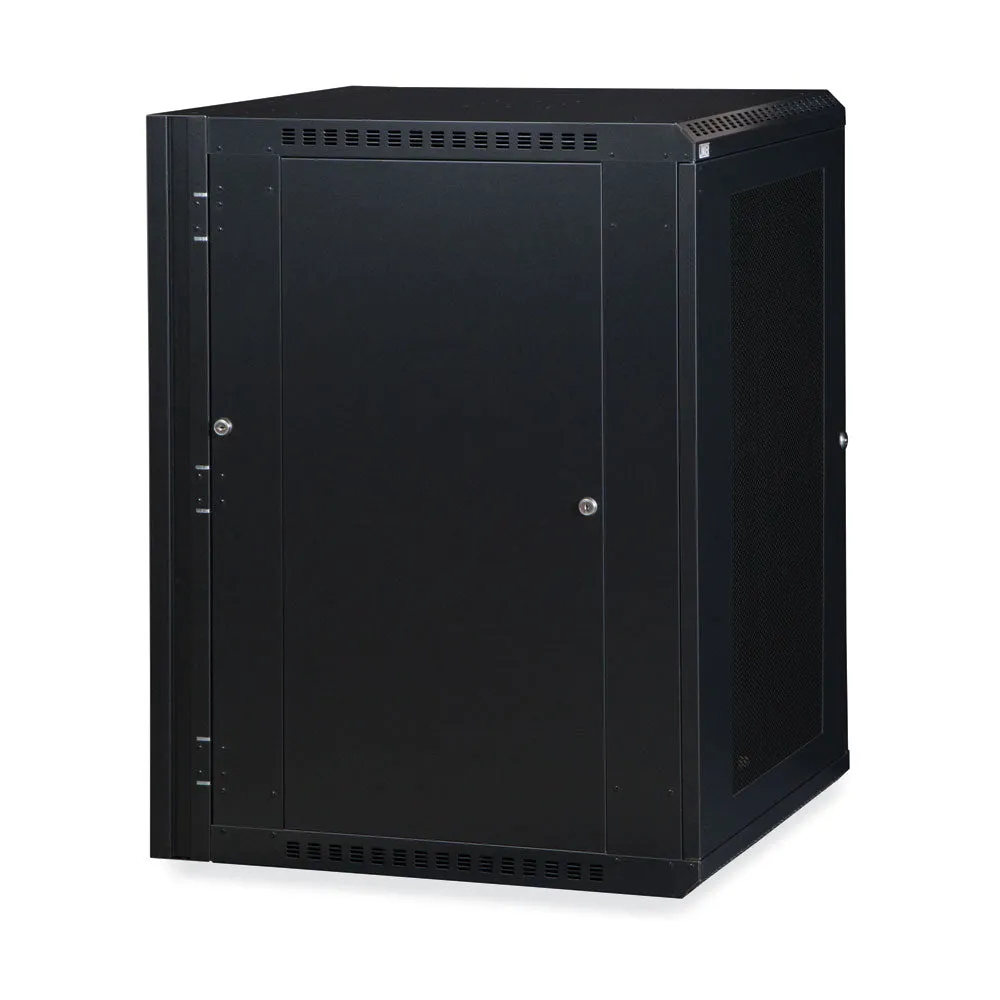

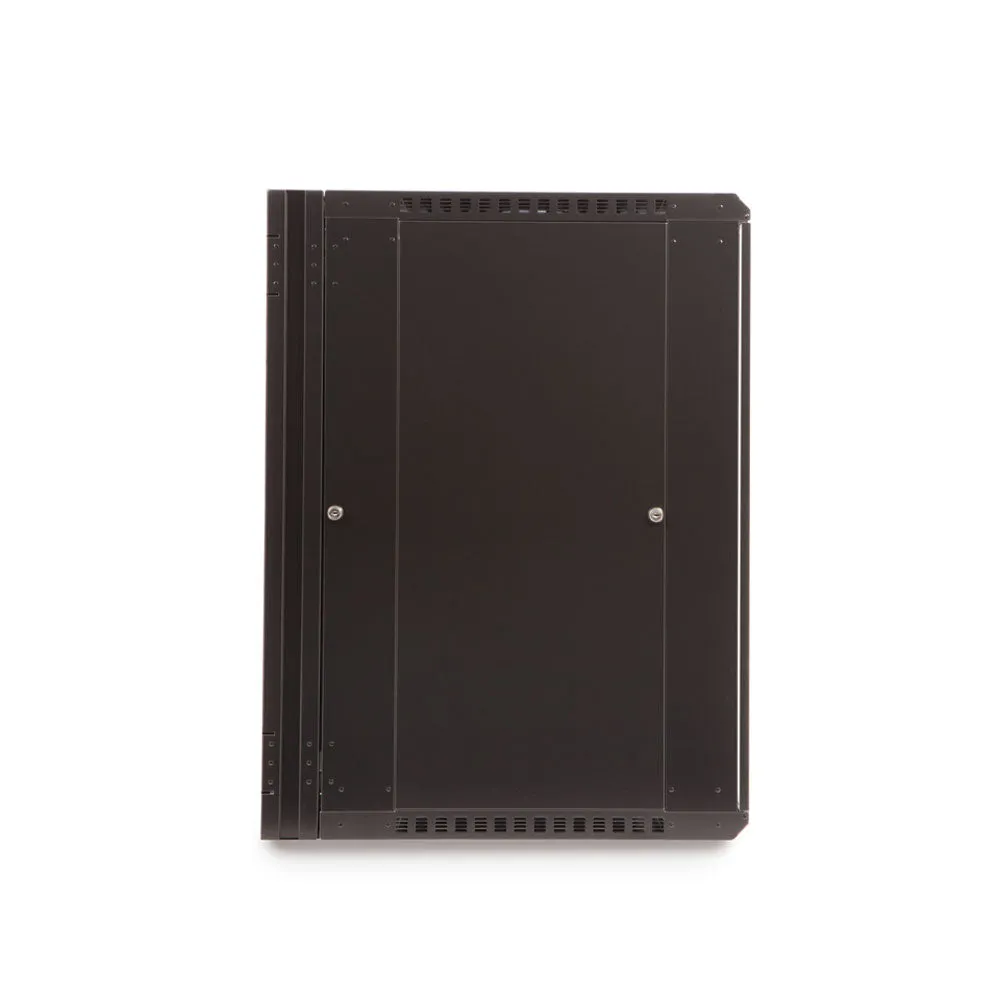

Removable Side Panels

Easy to remove side panels provide more access for growing or changing cabling schemes, as well as offer the option for increased air flow to prevent equipment from overheating.

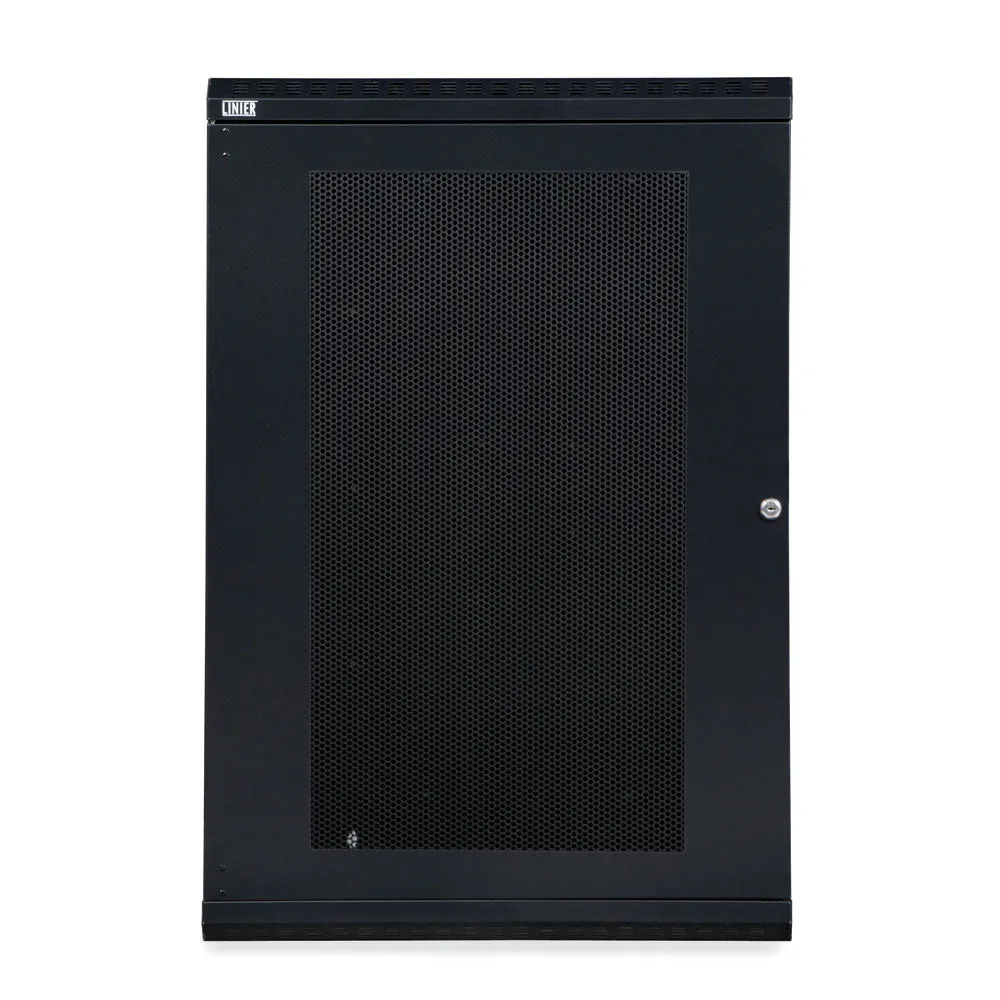

Reversible Vented Door

Vented door can be removed or reversed to be left or right mounted, to accommodate your particular installation. The vented door allows for ventilation for your network system.

Specifications
Part Number 3132-3-001-18
Width 23.50"
Depth 26.64" (Usable 22.50")
Height 35.21"
Weight 82.00 lbs.

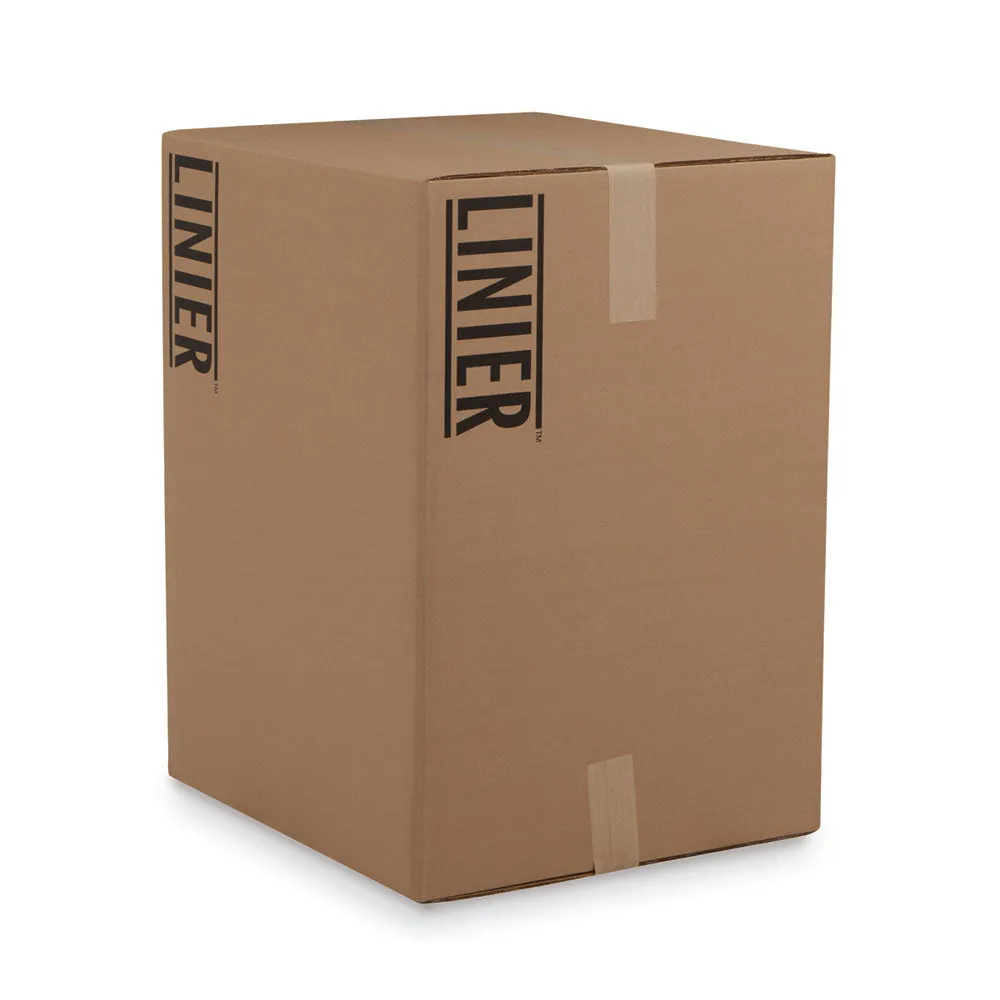

Shipping Dimensions 29" L x 31" W x 39" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Medium Texture Black
UPC 879447005264
Warranty 5-Year Limited Warranty
Shipping Method LTL Freight

What's in the Box
Item Quantity
18U LINIER Swing-Out Wall Mount Cabinet - Vented Door 1
Hardware Included 1
Set of Cage Nut Style Mounting Rails 1
10-32 Rack Screws 24
10-32 Cage Nuts 24

Resources
Title Type Date Version File Size
18U LINIER® Swing-Out Wall Mount Cabinet - Vented Door (3132-3-001-18) Data Sheet Data Sheet 05/19 1.0 157.53 KB
18U LINIER® Swing-Out Wall Mount Cabinet - Vented Door (3132-3-001-18) Instructions Instructions 10/21 1 483.42 KB
3132-3-001-18.STEP 3D CAD 10/20 1 12.73 MB
Wallmount Swing-Out Cut Sheet Cut Sheet 01/21 1 468.82 KB
